Special Form Tools and Stencils

THESE TOOLS MAY NOT WORK FOR YOUR APPLICATION
DUE TO MATERIAL TYPE OR THICKNESS.
WE CAN MAKE OR ORDER SPECIAL TOOLS AS NEEDED.

CARD GUIDES

Card Guide .076 WIDE x .750 L, .06 MTL 02988012

Card Guide .076 WIDE x 2.875 L, .036 MTL 04002952

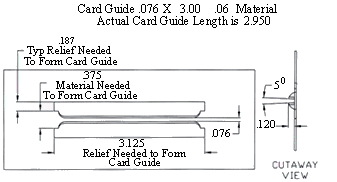

Card Guide .076 WIDE x 3.00 L, .06 MTL 0698016

EMBOSS AND DIMPLES

1.00 X .02 DEEP LINE EMBOSS
.37 X 1.273 X .025 DP RCT EMBOSS
("B" 1.0 1.0 "SPC" ".30 DIA X .03 DEEP EMBOSS
.158 FLAT .025 DP DIMPLE UP .025 MATL
.038 FLAT .025 DP DIMLPE UP .025 MATL
.82 FT EMBOSS UP .036 M S10569
.200 DIA .03 DP DOOM EMBOSS .036 MATL
.106 DIMPLE .03 DEEP .036 MATL
.25DIA .04 DP DOOM DIMPLE .036 MATL
.280 FLAT .04 DP .036 MATL DIMPLE
.25 FT .036 MATL DIMPLE S10016
.31 FT .19 DP .048 MATL DIMPLE
.15 DIA DIMPLE .06 MATL
.25 FT .065 DP .06 MATL DIMPLE 06988026
EMBOSS DW .340 .12 DP 55 DEG 404787-01
.03DPX .261FLATDIMDW S11208
DP105INSFT07DP05MTL07991007
.244FTs11020,02002930
01988005 OVAL FORM .7 X1.12

SHEAR FORMS

SF 10981061 .036MT .086 DP
SF CUP .35LG .18ED 10981060
.123 SHEAR BUTTON 05991003
DOUBLE SF .08WX.112HTX.35LG 06333042
S SF .08WX.112HTX.35W 06993041
S SF .08X.112X.35LG .06 MTL 07991112
SF CARD GUIDE .075/.66/.08DP,08991004
SF .125 WD, .175 HG, .05M 13441
SF OVAL .3, 1.25, .05 MTL 13442-B
3.200 X .530 LOUVER
4.000 X .500 LOUVER
FREOM .25 ED TAP .250 HI 10981062

FORM

.32WDX.4HG 90DEG FORM TAB 10985028
FORM GND TAB S-6313
HOOK FORM HT 09978021
DOUBLE FORM 13440-C
GCSF 13442-A
.12WX.188LG .05HI .048MATL SF 1194-821

THESE STENCILS WILL WORK ON ALL JOBS

.500 DIA GROUND SYMBOL AS LEFT VIEW
TOP CHARATURE, RIGHT VIEW
1.00 LONG LINE
